Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Flush-mounted installation
No
Rated voltage
400V
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Rated impulse withstand voltage Uimp
4kV
Voltage type
Other
Release characteristic
C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Number of protected poles
2
Number of poles (total)
2
Built-in depth
82mm
Rated current
6A
Current limiting class
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Power loss
3.6W
Frequency
50 - 60Hz
Over voltage category
3
Pollution degree
4
Concurrently switching neutral conductor
No
Additional equipment possible
Yes
Width in number of modular spacings
2
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
0.75 - 35mm²
Explosion-proof
No
Ambient temperature during operating
-25 - 60°C
Connectable conductor cross section multi-wired
0.75 - 25mm²
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

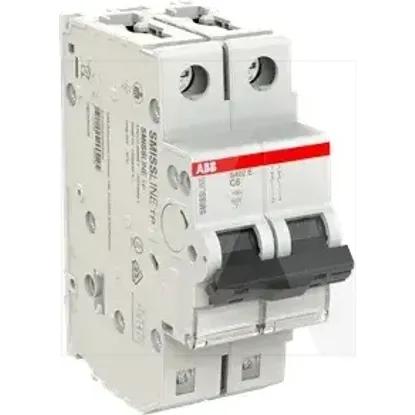

2CCS552001R0064 | S402E-C6
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsWarehouse statesTechnical specifications
Technical specifications
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Flush-mounted installation
Rated voltage
400V
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Rated impulse withstand voltage Uimp
4kV
Voltage type
Other
Release characteristic
C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Number of protected poles
2
Number of poles (total)
2
Built-in depth
82mm
Rated current
6A
Current limiting class
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Power loss
3.6W
Frequency
50 .. 60Hz
Over voltage category
3
Pollution degree
4
Concurrently switching neutral conductor
Additional equipment possible
Width in number of modular spacings
2
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
0.75 .. 35mm²
Explosion-proof
Ambient temperature during operating
-25 .. 60°C
Connectable conductor cross section multi-wired
0.75 .. 25mm²
