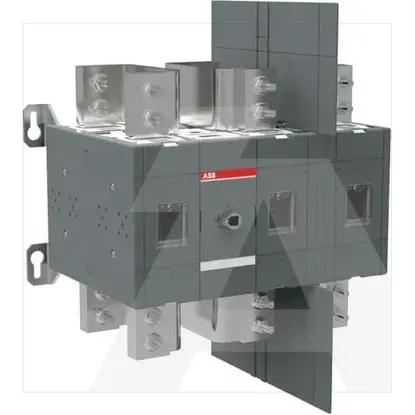

1SCA144200R1001 | OT1600U12

Version as emergency stop installation

No

Rated permanent current at AC-23, 400 V

-A

Max. rated operation voltage Ue AC

1000V

Version as main switch

Yes

Rated permanent current Iu

1600A

Version as reversing switch

No

Number of switches

1

Version as safety switch

No

Rated short-time withstand current lcw

50kA

Switching power at 400 V

-kW

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Version as maintenance-/service switch

Yes

Rated permanent current at AC-21, 400 V

-A

Rated operating voltage

- - -V

Rated operation power at AC-23, 400 V

-kW

Number of auxiliary contacts as change-over contact

0

Number of poles

3

Motor drive integrated

No

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Suitable for front mounting centre

No

Suitable for front mounting 4-hole

No

Voltage release optional

No

Suitable for distribution board installation

No

Interlockable

No

Type of electrical connection of main circuit

Bolt connection

Degree of protection (NEMA)

Other

Suitable for floor mounting

No

Type of control element

Other

Suitable for intermediate mounting

No

Width

445mm

With pre-assembled cabling

No

Device construction

Complete device in housing

Motor drive optional

No

Degree of protection (IP), front side

IP00

Height

546mm

Depth

335mm

Width in number of modular spacings

-
