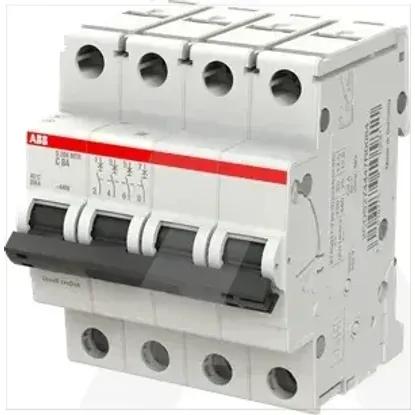

2CDS274447R0084 | S204MTR-C8
Code: 2003672
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
230,67 €
Neto230,67 €
RP288,34 €
DetailsWarehouse statesTechnical specifications
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Voltage type
Other
Power loss
5.5W
Release characteristic
C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Current limiting class
3
Number of protected poles
4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Frequency
50 - 60Hz
Rated current
8A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated impulse withstand voltage Uimp
4kV
Built-in depth
69mm
Number of poles (total)
4
Rated insulation voltage Ui
440V
Rated voltage
440V
Width in number of modular spacings
4.0
Concurrently switching neutral conductor
No
Ambient temperature during operating
-40 - 75°C
Explosion-proof
No
Over voltage category
3
Flush-mounted installation
No
Degree of protection (IP)
IP20
Pollution degree
3
Additional equipment possible
Yes
Connectable conductor cross section solid-core
0.75 - 35mm²
Connectable conductor cross section multi-wired
0.75 - 25mm²
Warehouse states
