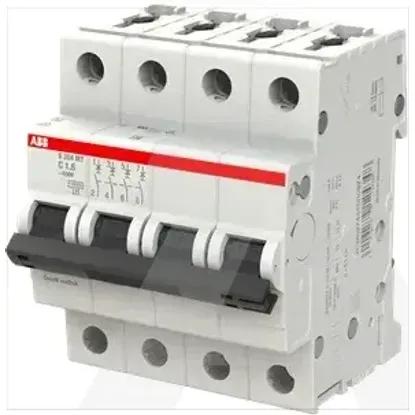

2CDS274445R0974 | S204MT-C1,6
Code: 2003663
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
141,40 €
Neto141,40 €
RP176,75 €
DetailsWarehouse statesTechnical specificationsRelated products
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Rated current
1.6A
Number of protected poles
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Number of poles (total)
4
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Built-in depth
69mm
Frequency
50 - 60Hz
Power loss
6.4W
Rated voltage
400V
Release characteristic
C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Current limiting class
3
Voltage type
Other
Over voltage category
3
Pollution degree
3
Explosion-proof
No
Ambient temperature during operating
-40 - 70°C
Connectable conductor cross section solid-core
0.75 - 35mm²
Degree of protection (IP)
IP20
Additional equipment possible
Yes
Width in number of modular spacings
4.0
Concurrently switching neutral conductor
No
Flush-mounted installation
No
Connectable conductor cross section multi-wired
0.75 - 25mm²
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
Related products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
