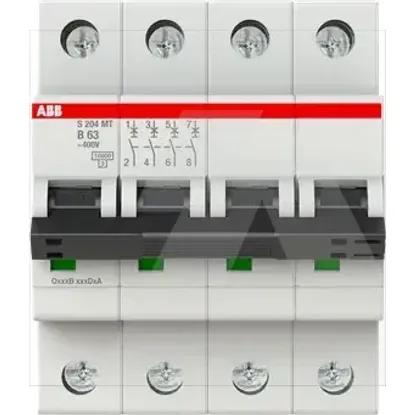

2CDS274445R0635 | S204MT-B63
Code: 2003661
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
153,42 €
Neto153,42 €
RP191,77 €
DetailsWarehouse statesTechnical specificationsRelated products
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Built-in depth
69mm
Rated current
63A
Number of protected poles
4
Number of poles (total)
4
Release characteristic
B
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated voltage
400V
Frequency
50 - 60Hz
Rated impulse withstand voltage Uimp
4kV
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Power loss
19.2W
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
No
Connectable conductor cross section multi-wired
0.75 - 25mm²
Explosion-proof
No
Flush-mounted installation
No
Connectable conductor cross section solid-core
0.75 - 35mm²
Width in number of modular spacings
4.0
Ambient temperature during operating
-40 - 70°C
Additional equipment possible
Yes
Over voltage category
3
Pollution degree
3
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
Related products
From same serie
