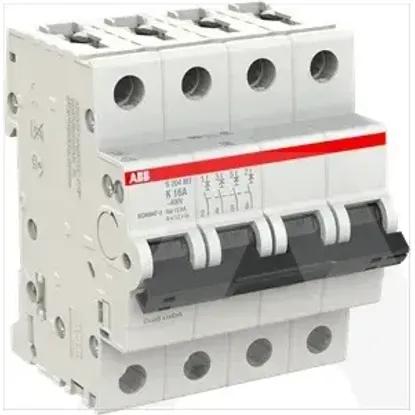

Main Product Image

2CDS274445R0467 | S204MT-K16

Code: 2003633

ManufacturerRAZNO
Catalog number2CDS274445R0467
Type
EAN code4016779127141

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Number of protected poles

4

Rated insulation voltage Ui

440V

Release characteristic

K

Rated current

16A

Number of poles (total)

4

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10kA

Voltage type

Other

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Rated voltage

440V

Built-in depth

69mm

Frequency

50 - 60Hz

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Current limiting class

3

Power loss

8.8W

Over voltage category

3

Flush-mounted installation

No

Pollution degree

3

Width in number of modular spacings

4.0

Concurrently switching neutral conductor

No

Connectable conductor cross section multi-wired

0.75 - 25mm²

Ambient temperature during operating

-40 - 70°C

Degree of protection (IP)

IP20

Additional equipment possible

Yes

Explosion-proof

No

Connectable conductor cross section solid-core

0.75 - 35mm²


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
