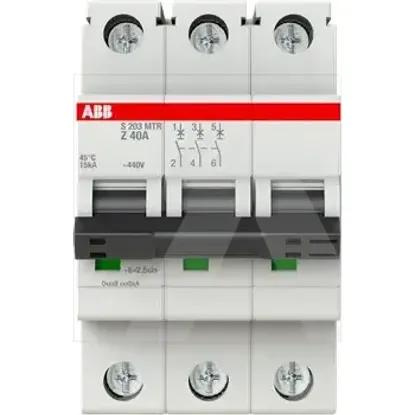

Main Product Image

2CDS273447R0558 | S203MTR-Z40

Code: 2003546

ManufacturerRAZNO
Catalog number2CDS273447R0558
Type
EAN code4016779105682

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Rated insulation voltage Ui

440V

Number of protected poles

3

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15kA

Rated impulse withstand voltage Uimp

4kV

Rated current

40A

Voltage type

Other

Number of poles (total)

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10kA

Rated voltage

440V

Current limiting class

3

Power loss

12.9W

Release characteristic

Z

Frequency

50 - 60Hz

Built-in depth

69mm

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Width in number of modular spacings

3.0

Flush-mounted installation

No

Additional equipment possible

Yes

Pollution degree

3

Over voltage category

3

Degree of protection (IP)

IP20

Concurrently switching neutral conductor

No

Explosion-proof

No

Connectable conductor cross section solid-core

0.75 - 35mm²

Connectable conductor cross section multi-wired

0.75 - 25mm²

Ambient temperature during operating

-40 - 75°C


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
