Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Number of protected poles
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated current
13A
Release characteristic
K
Rated voltage
440V
Power loss
6.2W
Number of poles (total)
3
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Voltage type
Other
Built-in depth
69mm
Rated impulse withstand voltage Uimp
4kV
Frequency
50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Current limiting class
3
Pollution degree
3
Additional equipment possible
Yes
Over voltage category
3
Flush-mounted installation
No
Concurrently switching neutral conductor
No
Width in number of modular spacings
3.0
Degree of protection (IP)
IP20
Ambient temperature during operating
-40 - 75°C
Connectable conductor cross section solid-core
0.75 - 35mm²
Connectable conductor cross section multi-wired
0.75 - 25mm²
Explosion-proof
No
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

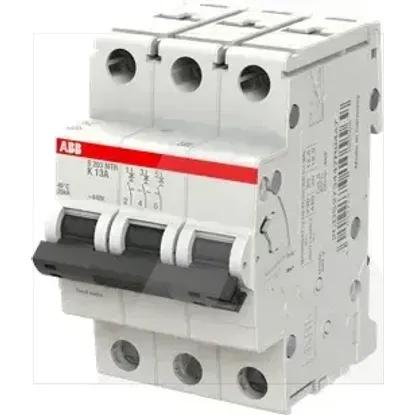

2CDS273447R0447 | S203MTR-K13
