Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Built-in depth
69mm
Number of protected poles
2
Release characteristic
Z
Rated insulation voltage Ui
440V
Number of poles (total)
2
Rated current
20A
Rated voltage
440V
Voltage type
Other
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Frequency
50 - 60Hz
Power loss
5.6W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Current limiting class
3
Flush-mounted installation
No
Concurrently switching neutral conductor
No
Degree of protection (IP)
IP20
Over voltage category
3
Ambient temperature during operating
-40 - 70°C
Additional equipment possible
Yes
Width in number of modular spacings
2.0
Pollution degree
3
Connectable conductor cross section multi-wired
0.75 - 25mm²
Explosion-proof
No
Connectable conductor cross section solid-core
0.75 - 35mm²
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

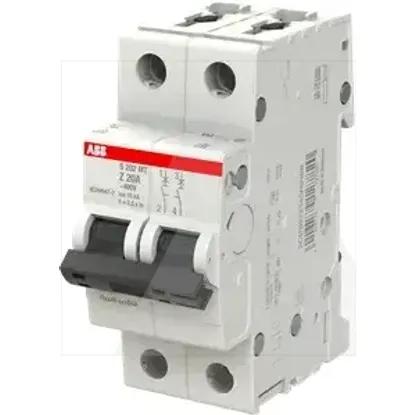

2CDS272445R0488 | S202MT-Z20
