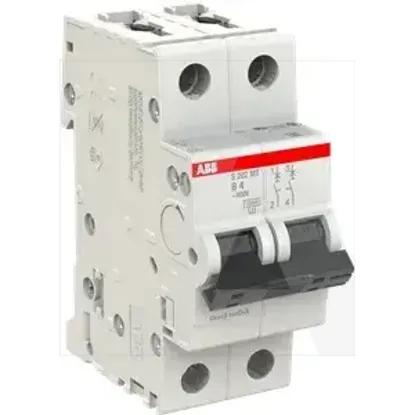

Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Rated insulation voltage Ui
440V
Built-in depth
69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated voltage
400V
Voltage type
Other
Current limiting class
3
Rated impulse withstand voltage Uimp
4kV
Number of protected poles
2
Frequency
50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Power loss
3.6W
Number of poles (total)
2
Rated current
4A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Release characteristic
B
Concurrently switching neutral conductor
No
Flush-mounted installation
No
Additional equipment possible
Yes
Width in number of modular spacings
2.0
Over voltage category
3
Pollution degree
3
Ambient temperature during operating
-40 - 70°C
Connectable conductor cross section multi-wired
0.75 - 25mm²
Connectable conductor cross section solid-core
0.75 - 35mm²
Degree of protection (IP)
IP20
Explosion-proof
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
