Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Built-in depth
69mm
Rated current
35A
Rated insulation voltage Ui
440V
Number of poles (total)
2
Release characteristic
K
Number of protected poles
2
Rated impulse withstand voltage Uimp
4kV
Rated voltage
400V
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Power loss
8.2W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Current limiting class
3
Frequency
50 - 60Hz
Flush-mounted installation
No
Additional equipment possible
Yes
Ambient temperature during operating
-25 - 55°C
Pollution degree
3
Concurrently switching neutral conductor
No
Width in number of modular spacings
2.0
Over voltage category
3
Degree of protection (IP)
IP20
Explosion-proof
No
Connectable conductor cross section multi-wired
0.75 - 25mm²
Connectable conductor cross section solid-core
0.75 - 35mm²
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

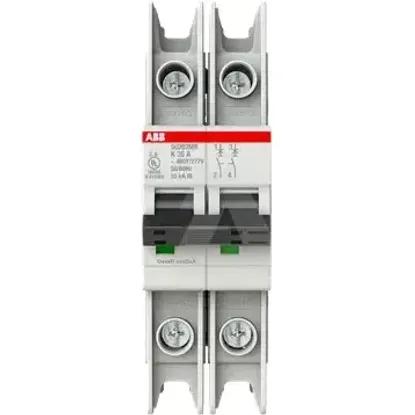

2CDS272347R0547 | SU202MR-K35
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Built-in depth
69mm
Rated current
35A
Rated insulation voltage Ui
440V
Number of poles (total)
2
Release characteristic
K
Number of protected poles
2
Rated impulse withstand voltage Uimp
4kV
Rated voltage
400V
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Power loss
8.2W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Current limiting class
3
Frequency
50 .. 60Hz
Flush-mounted installation
Additional equipment possible
Ambient temperature during operating
-25 .. 55°C
Pollution degree
3
Concurrently switching neutral conductor
Width in number of modular spacings
2.0
Over voltage category
3
Degree of protection (IP)
IP20
Explosion-proof
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Connectable conductor cross section solid-core
0.75 .. 35mm²
From same serie
