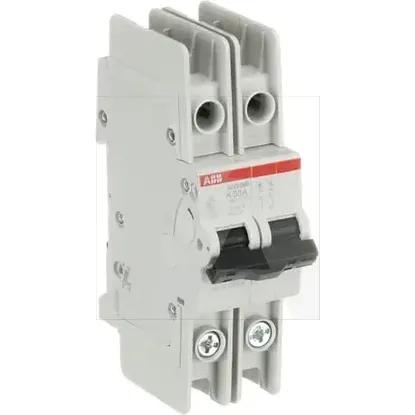

2CDS272347R0527 | SU202MR-K30
Code: 2002867
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
114,88 €
Neto114,88 €
RP143,60 €
DetailsWarehouse statesTechnical specifications
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Frequency
50 - 60Hz
Rated voltage
400V
Rated impulse withstand voltage Uimp
4kV
Rated insulation voltage Ui
440V
Built-in depth
69mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Number of protected poles
2
Rated current
30A
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Voltage type
Other
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Power loss
7W
Release characteristic
K
Flush-mounted installation
No
Additional equipment possible
Yes
Width in number of modular spacings
2.0
Concurrently switching neutral conductor
No
Over voltage category
3
Pollution degree
3
Ambient temperature during operating
-25 - 55°C
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
0.75 - 25mm²
Connectable conductor cross section solid-core
0.75 - 35mm²
Explosion-proof
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
