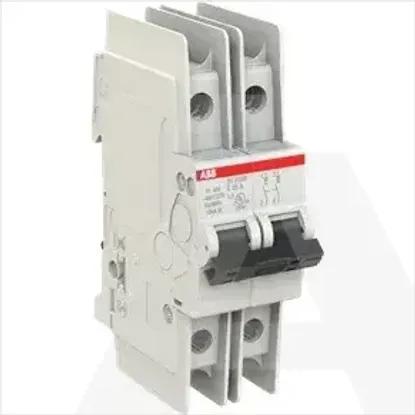

2CDS272337R0254 | SU202M-C25
Code: 2002797
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
99,97 €
Neto99,97 €
RP124,96 €
DetailsWarehouse statesTechnical specifications
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Suitable for flush-mounted installation
No
Built-in depth
69mm
Release characteristic
C
Number of poles (total)
2
Number of protected poles
2
Rated current
25A
Rated voltage
440V
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Voltage type
Other
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
11.2kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Frequency
50 - 60Hz
Power loss
6.4W
Flush-mounted installation
No
Current limiting class
3
Concurrently switching neutral conductor
No
Over voltage category
3
Pollution degree
3
Additional equipment possible
Yes
Width in number of modular spacings
2.0
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 55°C
Connectable conductor cross section multi-wired
0.75 - 25mm²
Connectable conductor cross section solid-core
0.75 - 35mm²
Explosion-proof
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
