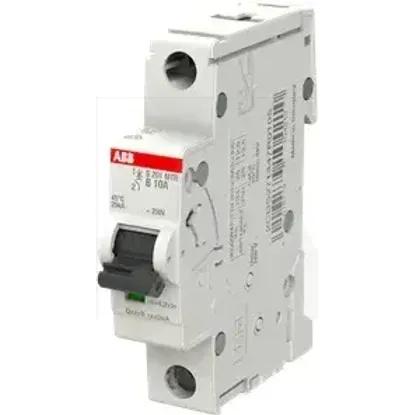

Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Built-in depth
69mm
Rated current
10A
Rated insulation voltage Ui
440V
Number of poles (total)
1
Release characteristic
B
Rated impulse withstand voltage Uimp
4kV
Number of protected poles
1
Rated voltage
253V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Power loss
2.4W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Voltage type
Other
Current limiting class
3
Frequency
50 - 60Hz
Over voltage category
3
Degree of protection (IP)
IP20
Flush-mounted installation
No
Concurrently switching neutral conductor
No
Ambient temperature during operating
-40 - 75°C
Additional equipment possible
Yes
Width in number of modular spacings
1.0
Pollution degree
3
Connectable conductor cross section solid-core
0.75 - 35mm²
Connectable conductor cross section multi-wired
0.75 - 25mm²
Explosion-proof
No
From same serie
