Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
Technical specifications
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Built-in depth
69mm
Power loss
5.6W
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Frequency
50 - 60Hz
Release characteristic
Z
Rated voltage
230V
Number of poles (total)
2
Rated impulse withstand voltage Uimp
4kV
Voltage type
Other
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated current
20A
Current limiting class
3
Number of protected poles
1
Flush-mounted installation
No
Over voltage category
3
Concurrently switching neutral conductor
Yes
Degree of protection (IP)
IP20
Additional equipment possible
Yes
Pollution degree
3
Ambient temperature during operating
-40 - 70°C
Connectable conductor cross section solid-core
0.75 - 35mm²
Width in number of modular spacings
2.0
Connectable conductor cross section multi-wired
0.75 - 25mm²
Explosion-proof
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

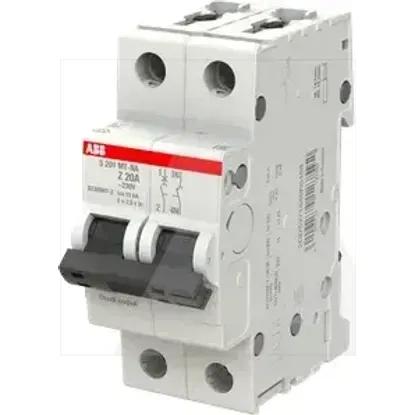

2CDS271446R0488 | S201MT-Z20NA
