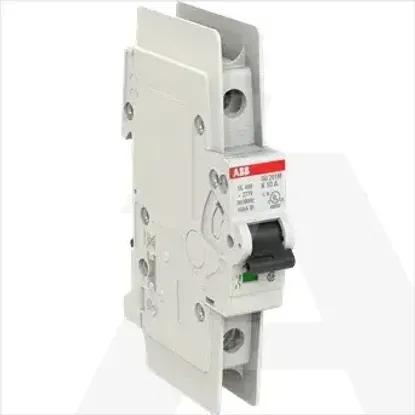

2CDS271337R0427 | SU201M-K10

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Number of protected poles

1

Number of poles (total)

1

Release characteristic

K

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Voltage type

AC/DC

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

11.2kA

Frequency

50 - 60Hz

Concurrently switching neutral conductor

No

Over voltage category

3

Rated current

10A

Suitable for flush-mounted installation

No

Rated insulation voltage Ui

440V

Pollution degree

3

Additional equipment possible

Yes

Degree of protection (IP)

IP20

Ambient temperature during operating

-25 - 55°C

Rated voltage

277V

Connectable conductor cross section solid-core

0 - 35mm²

Built-in depth

69mm

Current limiting class

3

Connectable conductor cross section multi-wired

0 - 25mm²

Width in number of modular spacings

1
