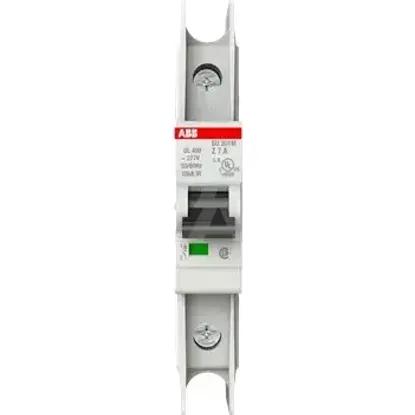

2CDS271337R0388 | SU201M-Z7

Built-in depth

69mm

Release characteristic

Z

Number of poles (total)

1

Number of protected poles

1

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Power loss

1.5W

Rated insulation voltage Ui

440V

Rated impulse withstand voltage Uimp

4kV

Voltage type

Other

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

11.2kA

Frequency

50 - 60Hz

Rated current

7A

Rated voltage

277V

Current limiting class

3

Degree of protection (IP)

IP20

Additional equipment possible

Yes

Over voltage category

3

Pollution degree

3

Width in number of modular spacings

1.0

Flush-mounted installation

No

Concurrently switching neutral conductor

No

Connectable conductor cross section multi-wired

0.75 - 25mm²

Explosion-proof

No

Ambient temperature during operating

-25 - 55°C

Connectable conductor cross section solid-core

0.75 - 35mm²
