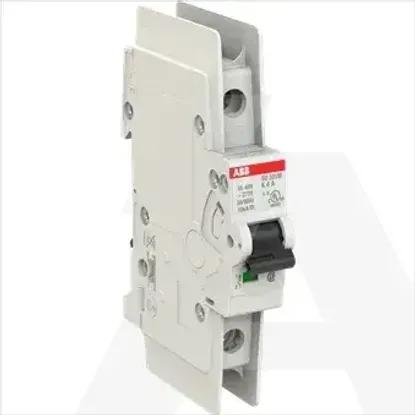

2CDS271337R0337 | SU201M-K4

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Release characteristic

K

Number of poles (total)

1

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Number of protected poles

1

Additional equipment possible

Yes

Rated insulation voltage Ui

440V

Degree of protection (IP)

IP20

Suitable for flush-mounted installation

No

Ambient temperature during operating

-25 - 55°C

Rated voltage

277V

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

11.2kA

Built-in depth

69mm

Current limiting class

3

Voltage type

AC/DC

Rated current

4A

Width in number of modular spacings

1

Over voltage category

3

Pollution degree

3

Frequency

50 - 60Hz

Connectable conductor cross section multi-wired

0 - 25mm²

Connectable conductor cross section solid-core

0 - 35mm²

Concurrently switching neutral conductor

No
