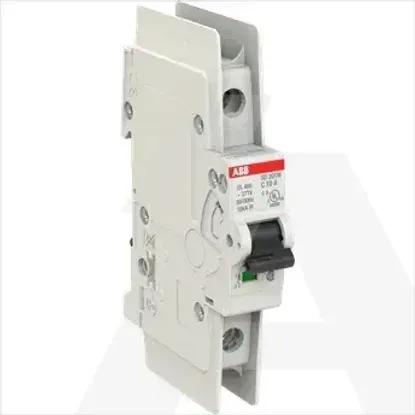

2CDS271337R0104 | SU201M-C10

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Number of protected poles

1

Rated current

10A

Number of poles (total)

1

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Release characteristic

C

Rated voltage

277V

Current limiting class

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

11.2kA

Suitable for flush-mounted installation

No

Rated insulation voltage Ui

440V

Voltage type

AC/DC

Width in number of modular spacings

1

Frequency

50 - 60Hz

Pollution degree

3

Built-in depth

69mm

Connectable conductor cross section multi-wired

0 - 25mm²

Concurrently switching neutral conductor

No

Ambient temperature during operating

-25 - 55°C

Additional equipment possible

Yes

Over voltage category

3

Connectable conductor cross section solid-core

0 - 35mm²

Degree of protection (IP)

IP20
