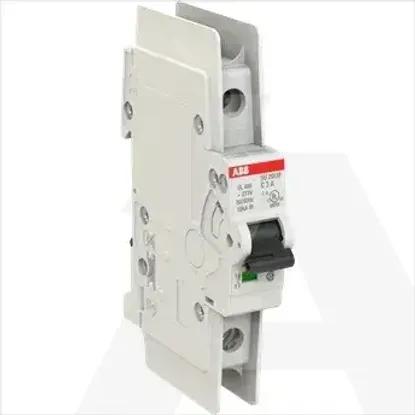

2CDS271337R0034 | SU201M-C3

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15kA

Frequency

50 - 60Hz

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

11.2kA

Suitable for flush-mounted installation

No

Release characteristic

C

Pollution degree

3

Rated voltage

277V

Voltage type

AC/DC

Additional equipment possible

Yes

Number of protected poles

1

Rated insulation voltage Ui

440V

Concurrently switching neutral conductor

No

Width in number of modular spacings

1

Ambient temperature during operating

-25 - 55°C

Built-in depth

69mm

Connectable conductor cross section solid-core

0 - 35mm²

Over voltage category

3

Current limiting class

3

Number of poles (total)

1

Degree of protection (IP)

IP20

Rated current

3A

Connectable conductor cross section multi-wired

0 - 25mm²
