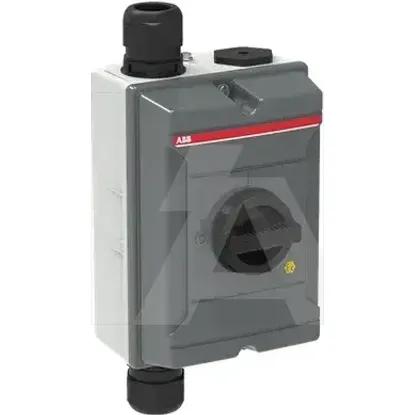

Main Product Image

1SCA152730R1001 | OTA40S4BX-ATEX ENCLOSED SAFETY SWITCH

Code: 2001301

ManufacturerRAZNO
Catalog number1SCA152730R1001
Type
EAN code6417019839288

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • ABB

Technical specifications

Rated operation power at AC-3, 400 V

-kW

Rated short-time withstand current lcw

-kA

Number of auxiliary contacts as change-over contact

0

Suitable for intermediate mounting

No

Degree of protection (NEMA)

Other

Max. rated operation voltage Ue AC

750V

Version as maintenance-/service switch

Yes

Version as reversing switch

No

Rated operating voltage

750 - 750V

Rated permanent current at AC-23, 400 V

23A

Version as safety switch

Yes

Rated permanent current at AC-21, 400 V

40A

Version as emergency stop installation

No

Switching power at 400 V

11kW

Number of poles

4

Motor drive optional

No

Number of auxiliary contacts as normally open contact

2

Rated permanent current Iu

40A

Suitable for front mounting 4-hole

Yes

Suitable for front mounting centre

No

Voltage release optional

No

Type of electrical connection of main circuit

Screw connection

Type of control element

Turn button

Colour control element

Black

Degree of protection (IP), front side

IP65

Conditioned rated short-circuit current Iq

6.5kA

Suitable for distribution board installation

No

Number of switches

1

Motor drive integrated

No

Version as main switch

Yes

Number of auxiliary contacts as normally closed contact

2

Interlockable

No

Rated operation power at AC-23, 400 V

11kW

Suitable for floor mounting

No

Device construction

Complete device in housing


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
