Aleta.hr
Main Product Image

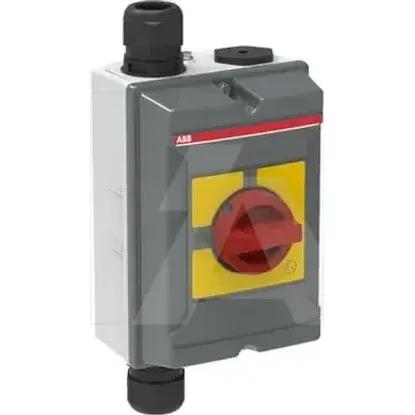

1SCA152717R1001 | OTA16S3YX-ATEX ENCLOSED SAFETY SWITCH

Code: 2001293

ManufacturerRAZNO
Catalog number1SCA152717R1001
Type
EAN code6417019839158

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • ABB

Technical specifications

Rated short-time withstand current lcw

-kA

Rated operation power at AC-3, 400 V

-kW

Number of auxiliary contacts as change-over contact

0

Suitable for intermediate mounting

No

Degree of protection (NEMA)

Other

Version as safety switch

Yes

Version as main switch

Yes

Version as emergency stop installation

No

Version as maintenance-/service switch

Yes

Number of switches

1

Switching power at 400 V

7.5kW

Rated permanent current Iu

25A

Conditioned rated short-circuit current Iq

6.5kA

Rated permanent current at AC-21, 400 V

16A

Rated operation power at AC-23, 400 V

7.5kW

Number of auxiliary contacts as normally closed contact

2

Rated permanent current at AC-23, 400 V

16A

Max. rated operation voltage Ue AC

750V

Motor drive integrated

No

Suitable for front mounting 4-hole

Yes

Device construction

Complete device in housing

Colour control element

Red

Voltage release optional

No

Type of electrical connection of main circuit

Screw connection

Interlockable

No

Number of poles

3

Type of control element

Turn button

Suitable for distribution board installation

No

Degree of protection (IP), front side

IP65

Number of auxiliary contacts as normally open contact

2

Version as reversing switch

No

Suitable for front mounting centre

No

Suitable for floor mounting

No

Motor drive optional

No

Rated operating voltage

750 - 750V


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
