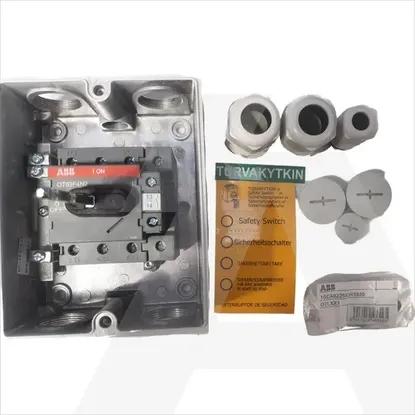

Main Product Image

1SCA142673R1001 | OTA25S4G-ENCLOSED SAFETY SWITCH

Code: 2001280

ManufacturerRAZNO
Catalog number1SCA142673R1001
Type
EAN code6417019701721

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Number of switches

1

Version as safety switch

Yes

Version as main switch

Yes

Version as reversing switch

No

Rated permanent current at AC-23, 400 V

30A

Version as maintenance-/service switch

Yes

Rated short-time withstand current lcw

1kA

Max. rated operation voltage Ue AC

750V

Version as emergency stop installation

No

Switching power at 400 V

15kW

Rated permanent current Iu

63A

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Rated operation power at AC-23, 400 V

15kW

Rated permanent current at AC-21, 400 V

-A

Rated operating voltage

750 - 750V

Number of poles

4

Voltage release optional

No

Suitable for floor mounting

No

Number of auxiliary contacts as normally closed contact

0

Suitable for front mounting 4-hole

No

Suitable for intermediate mounting

No

Device construction

Complete device in housing

Number of auxiliary contacts as normally open contact

1

Suitable for front mounting centre

No

Degree of protection (IP), front side

IP65

Type of electrical connection of main circuit

Screw connection

Interlockable

Yes

Type of control element

Turn button

Degree of protection (NEMA)

Other

With pre-assembled cabling

No

Motor drive optional

No

Suitable for distribution board installation

Yes

Motor drive integrated

No

Width

130mm

Number of auxiliary contacts as change-over contact

0

Colour control element

Black

Width in number of modular spacings

-

Depth

103mm

Height

165mm


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
