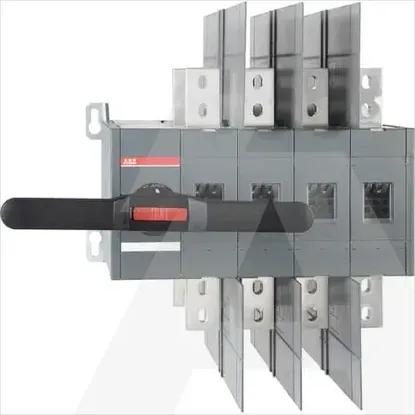

Main Product Image

1SCA104036R1001 | OT800U04CP

Code: 2001265

ManufacturerRAZNO
Catalog number1SCA104036R1001
Type
EAN code6417019383774

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Number of switches

1

Version as maintenance-/service switch

Yes

Max. rated operation voltage Ue AC

1000V

Version as safety switch

No

Version as emergency stop installation

No

Rated permanent current at AC-21, 400 V

1600A

Version as main switch

Yes

Rated operating voltage

1000 - 1000V

Version as reversing switch

No

Rated permanent current at AC-23, 400 V

1600A

Rated short-time withstand current lcw

50kA

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Rated operation power at AC-23, 400 V

-kW

Switching power at 400 V

-kW

Rated permanent current Iu

-A

Number of auxiliary contacts as change-over contact

0

Motor drive optional

No

Number of poles

4

Number of auxiliary contacts as normally closed contact

0

Voltage release optional

No

Motor drive integrated

No

Number of auxiliary contacts as normally open contact

0

Suitable for front mounting 4-hole

Yes

Suitable for floor mounting

No

Device construction

Built-in device plug-in technique

Colour control element

Black

Suitable for intermediate mounting

No

Suitable for front mounting centre

No

Type of electrical connection of main circuit

Screw connection

Degree of protection (IP), front side

IP20

Interlockable

Yes

Degree of protection (NEMA)

1

With pre-assembled cabling

No

Suitable for distribution board installation

Yes

Width

480mm

Type of control element

Long turning handle

Height

376mm

Width in number of modular spacings

-

Depth

335mm


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
