Aleta.hr

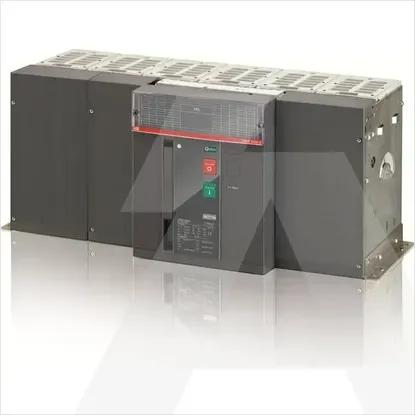

Main Product Image

1SDA079661R1 | E6.2L-A/MS 5000 3p F HR

Code: 1985716

ManufacturerRAZNO
Catalog number1SDA079661R1
Type
EAN code8015644860844

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • ABB

Technical specifications

Number of switches

0

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Rated operation power at AC-23, 400 V

-kW

Switching power at 400 V

-kW

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Interlockable

Yes

Voltage release optional

Yes

Motor drive optional

Yes

Rated permanent current Iu

5000A

Rated permanent current at AC-21, 400 V

5000A

Version as maintenance-/service switch

No

Suitable for front mounting 4-hole

No

Version as reversing switch

No

Rated short-time withstand current lcw

100kA

Device construction

Built-in device fixed built-in technique

Version as emergency stop installation

No

Type of electrical connection of main circuit

Bolt connection

Rated operating voltage

600 - 600V

Suitable for distribution board installation

Yes

Version as main switch

Yes

Suitable for intermediate mounting

No

Motor drive integrated

No

Type of control element

Push button

Version as safety switch

No

Number of poles

3

Colour control element

Other

Suitable for floor mounting

No

Suitable for front mounting centre

No

Degree of protection (NEMA)

Other

Degree of protection (IP), front side

IP30

Max. rated operation voltage Ue AC

600V

Rated permanent current at AC-23, 400 V

5000A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
