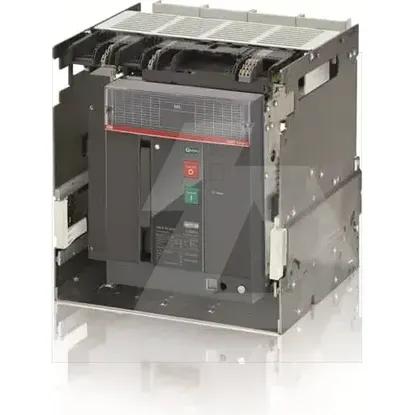

1SDA079591R1 | E2.2V-A/MS 800 4p WMP

Rated permanent current Iu

800 A

Rated permanent current at AC-23, 400 V

800 A

Rated permanent current at AC-21, 400 V

800 A

Rated operation power at AC-3, 400 V

-kW

Rated operation power at AC-23, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Switching power at 400 V

-kW

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Type of control element

Push button

Interlockable

Yes

Version as safety switch

No

Version as reversing switch

No

Version as main switch

Yes

Number of switches

0

Rated short-time withstand current lcw

85kA

Motor drive optional

Yes

Number of poles

4

Voltage release optional

Yes

Device construction

Built-in device slide-in technique (withdrawable)

Suitable for front mounting 4-hole

No

Suitable for front mounting centre

No

Suitable for intermediate mounting

No

Type of electrical connection of main circuit

Bolt connection

Version as maintenance-/service switch

No

Max. rated operation voltage Ue AC

600V

Version as emergency stop installation

No

Motor drive integrated

No

Suitable for floor mounting

No

Colour control element

Other

Rated operating voltage

600 - 600V

Suitable for distribution board installation

Yes

Degree of protection (IP), front side

IP30

Degree of protection (NEMA)

Other
