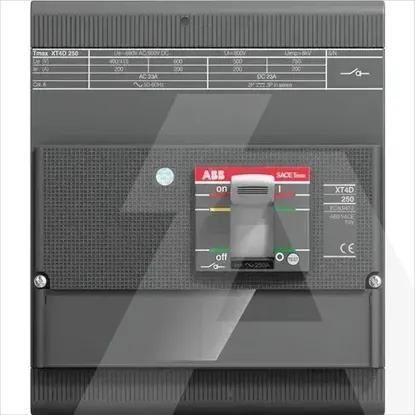

Main Product Image

1SDA075621R1 | XT4N-D 250 MCS-UL/CSA Im=2500 4p F F

Code: 1983813

ManufacturerRAZNO
Catalog number1SDA075621R1
Type
EAN code8015644795986

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • ABB

Technical specifications

Number of switches

-

Rated operation power at AC-23, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Rated permanent current at AC-21, 400 V

250A

Rated operation power at AC-3, 400 V

-kW

Rated permanent current at AC-23, 400 V

-A

Rated short-time withstand current lcw

-kA

Switching power at 400 V

-kW

Suitable for front mounting 4-hole

No

Version as maintenance-/service switch

No

Version as safety switch

No

Version as main switch

Yes

Version as emergency stop installation

No

Max. rated operation voltage Ue AC

600V

Rated operating voltage

0 - 600V

Number of poles

4

Number of auxiliary contacts as normally open contact

0

Version as reversing switch

No

Rated permanent current Iu

250A

Number of auxiliary contacts as change-over contact

0

Motor drive integrated

No

Voltage release optional

Yes

Motor drive optional

Yes

Device construction

Built-in device fixed built-in technique

Suitable for floor mounting

No

Suitable for front mounting centre

No

Colour control element

White

Interlockable

Yes

Suitable for intermediate mounting

No

Number of auxiliary contacts as normally closed contact

0

Degree of protection (IP), front side

IP20

Degree of protection (NEMA)

1

Suitable for distribution board installation

Yes

Type of electrical connection of main circuit

Bolt connection


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
