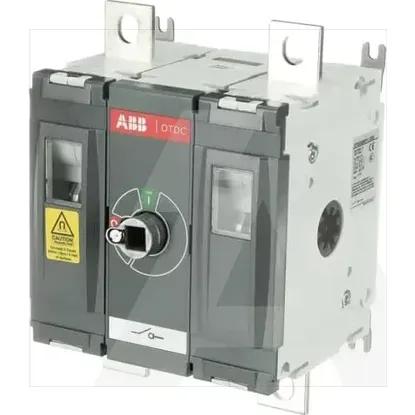

1SCA158251R1001 | OTDC630FV11-ESS

Max. rated operation voltage Ue AC

-V

Rated permanent current at AC-23, 400 V

-A

Rated permanent current at AC-21, 400 V

-A

Rated operation power at AC-3, 400 V

-kW

Rated operation power at AC-23, 400 V

-kW

Switching power at 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Type of control element

Other

Version as safety switch

No

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as emergency stop installation

No

Rated operating voltage

1500 - 1500V

Version as reversing switch

No

Rated short-time withstand current lcw

10kA

Number of poles

2

Number of switches

1

Rated permanent current Iu

630A

Voltage release optional

No

Suitable for front mounting 4-hole

Yes

Motor drive integrated

No

Device construction

Built-in device fixed built-in technique

Motor drive optional

No

Suitable for floor mounting

No

Suitable for intermediate mounting

No

Suitable for front mounting centre

No

Interlockable

No

Suitable for distribution board installation

Yes

Type of electrical connection of main circuit

Bolt connection

Degree of protection (IP), front side

IP20

Degree of protection (NEMA)

1
