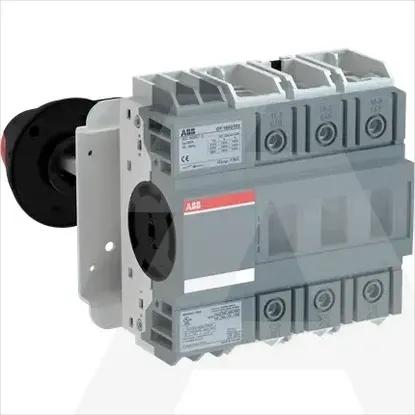

Main Product Image

1SCA135141R1001 | OT160GT03P

Code: 1982638

ManufacturerRAZNO
Catalog number1SCA135141R1001
Type
EAN code6417019638720

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Version as maintenance-/service switch

Yes

Version as main switch

Yes

Max. rated operation voltage Ue AC

1000V

Version as emergency stop installation

No

Version as reversing switch

No

Rated permanent current at AC-21, 400 V

160A

Switching power at 400 V

75kW

Rated operation power at AC-3, 400 V

-kW

Rated operation power at AC-23, 400 V

75kW

Version as safety switch

No

Rated permanent current at AC-23, 400 V

160A

Rated short-time withstand current lcw

4kA

Number of switches

1

Rated permanent current Iu

160A

Conditioned rated short-circuit current Iq

50kA

Rated operating voltage

1000 - 1000V

Motor drive integrated

No

Number of poles

3

Number of auxiliary contacts as change-over contact

0

Suitable for front mounting 4-hole

No

Voltage release optional

No

Device construction

Complete device in housing

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Motor drive optional

No

Suitable for floor mounting

No

Suitable for distribution board installation

No

Type of control element

Long turning handle

Suitable for front mounting centre

No

Colour control element

Black

Interlockable

No

Type of electrical connection of main circuit

Screw connection

Degree of protection (IP), front side

IP20

With pre-assembled cabling

No

Width

123mm

Degree of protection (NEMA)

Other

Suitable for intermediate mounting

No

Width in number of modular spacings

-

Height

130mm

Depth

75mm


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
