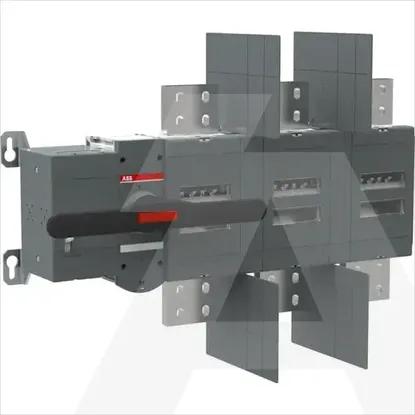

Main Product Image

1SCA129218R1001 | OTM4000E3W8M230C

Code: 1982630

ManufacturerRAZNO
Catalog number1SCA129218R1001
Type
EAN code6417019589022

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Version as maintenance-/service switch

No

Version as main switch

Yes

Version as safety switch

No

Version as emergency stop installation

No

Version as reversing switch

No

Rated permanent current Iu

-A

Rated operation power at AC-23, 400 V

-kW

Rated short-time withstand current lcw

80kA

Switching power at 400 V

-kW

Rated permanent current at AC-21, 400 V

-A

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Rated operating voltage

1000 - 1000V

Rated permanent current at AC-23, 400 V

-A

Max. rated operation voltage Ue AC

1000V

Number of switches

1

Device construction

Complete device in housing

Motor drive integrated

No

Motor drive optional

No

Voltage release optional

No

Number of auxiliary contacts as normally closed contact

0

Suitable for floor mounting

No

Suitable for intermediate mounting

No

Suitable for front mounting centre

No

Suitable for distribution board installation

Yes

Type of control element

Long turning handle

Number of auxiliary contacts as normally open contact

0

With pre-assembled cabling

No

Suitable for front mounting 4-hole

Yes

Type of electrical connection of main circuit

Bolt connection

Colour control element

Black

Number of auxiliary contacts as change-over contact

0

Interlockable

No

Number of poles

3

Degree of protection (IP), front side

IP00

Degree of protection (NEMA)

Other

Width

776.5mm

Width in number of modular spacings

-

Height

410mm

Depth

165.5mm


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
