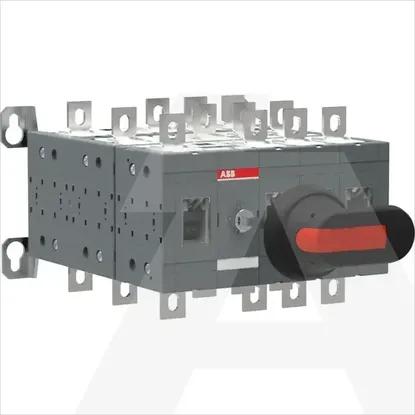

Main Product Image

1SCA123571R1001 | OT250E13YP

Code: 1982543

ManufacturerRAZNO
Catalog number1SCA123571R1001
Type
EAN code6417019543550

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Version as main switch

Yes

Max. rated operation voltage Ue AC

1000V

Version as safety switch

No

Number of switches

1

Rated operating voltage

1000 - 1000V

Version as emergency stop installation

No

Rated permanent current at AC-23, 400 V

250A

Rated permanent current Iu

-A

Version as reversing switch

No

Rated operation power at AC-3, 400 V

-kW

Rated short-time withstand current lcw

8kA

Conditioned rated short-circuit current Iq

-kA

Rated permanent current at AC-21, 400 V

250A

Switching power at 400 V

140kW

Rated operation power at AC-23, 400 V

140kW

Version as maintenance-/service switch

Yes

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Device construction

Built-in device plug-in technique

Suitable for front mounting centre

No

Suitable for floor mounting

No

Number of poles

4

Number of auxiliary contacts as normally open contact

0

Motor drive optional

No

Suitable for front mounting 4-hole

Yes

Motor drive integrated

No

Suitable for intermediate mounting

No

Voltage release optional

No

With pre-assembled cabling

No

Type of control element

Long turning handle

Type of electrical connection of main circuit

Screw connection

Suitable for distribution board installation

Yes

Degree of protection (IP), front side

IP20

Degree of protection (NEMA)

1

Width

229mm

Interlockable

Yes

Colour control element

Black

Width in number of modular spacings

-

Height

150mm

Depth

236mm


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
