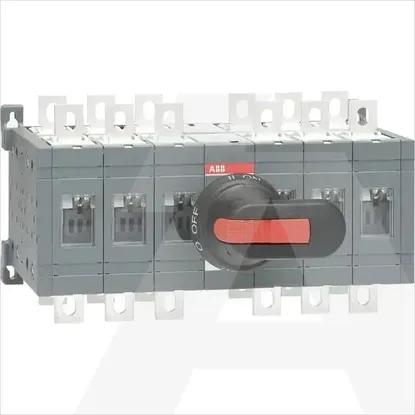

Main Product Image

1SCA118551R1001 | OT250E33CP

Code: 1982394

ManufacturerRAZNO
Catalog number1SCA118551R1001
Type
EAN code6417019503080

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Version as maintenance-/service switch

Yes

Version as main switch

Yes

Version as safety switch

No

Version as emergency stop installation

No

Version as reversing switch

No

Number of switches

1

Rated operating voltage

1000 - 1000V

Max. rated operation voltage Ue AC

1000V

Rated permanent current at AC-21, 400 V

250A

Rated short-time withstand current lcw

8kA

Switching power at 400 V

140kW

Rated permanent current Iu

-A

Rated operation power at AC-3, 400 V

-kW

Rated operation power at AC-23, 400 V

140kW

Conditioned rated short-circuit current Iq

-kA

Rated permanent current at AC-23, 400 V

250A

Number of auxiliary contacts as normally open contact

0

Motor drive optional

No

Device construction

Built-in device plug-in technique

Voltage release optional

No

Number of poles

6

Motor drive integrated

No

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally closed contact

0

Suitable for intermediate mounting

No

Suitable for distribution board installation

Yes

Suitable for front mounting centre

No

Suitable for floor mounting

No

Suitable for front mounting 4-hole

Yes

Colour control element

Black

With pre-assembled cabling

No

Degree of protection (NEMA)

1

Degree of protection (IP), front side

IP20

Type of electrical connection of main circuit

Screw connection

Type of control element

Long turning handle

Width

275mm

Interlockable

Yes

Depth

160mm

Height

150mm

Width in number of modular spacings

-


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
