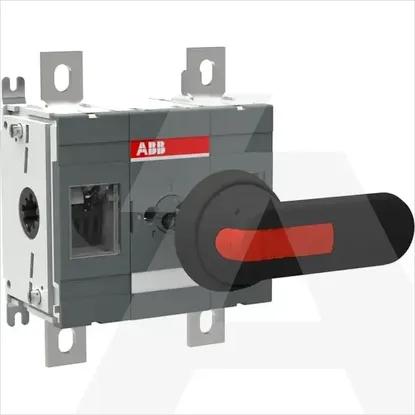

Main Product Image

1SCA109801R1001 | OT315E11P

Code: 1982161

ManufacturerRAZNO
Catalog number1SCA109801R1001
Type
EAN code6417019428154

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Version as maintenance-/service switch

Yes

Version as safety switch

No

Version as main switch

Yes

Number of switches

1

Rated operating voltage

1000 - 1000V

Rated permanent current at AC-21, 400 V

315A

Rated operation power at AC-3, 400 V

-kW

Rated permanent current at AC-23, 400 V

315A

Conditioned rated short-circuit current Iq

-kA

Rated operation power at AC-23, 400 V

180kW

Max. rated operation voltage Ue AC

1000V

Switching power at 400 V

180kW

Rated short-time withstand current lcw

15kA

Version as reversing switch

No

Version as emergency stop installation

No

Rated permanent current Iu

315A

Number of poles

2

Number of auxiliary contacts as normally closed contact

0

Suitable for floor mounting

No

Motor drive optional

No

Motor drive integrated

No

Number of auxiliary contacts as normally open contact

0

Suitable for front mounting centre

No

Device construction

Complete device in housing

Number of auxiliary contacts as change-over contact

0

Suitable for front mounting 4-hole

No

Type of electrical connection of main circuit

Bolt connection

Suitable for intermediate mounting

No

Colour control element

Black

With pre-assembled cabling

No

Degree of protection (IP), front side

IP00

Suitable for distribution board installation

Yes

Type of control element

Long turning handle

Degree of protection (NEMA)

Other

Width

152mm

Interlockable

No

Voltage release optional

No

Width in number of modular spacings

-

Height

185mm

Depth

107mm


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
