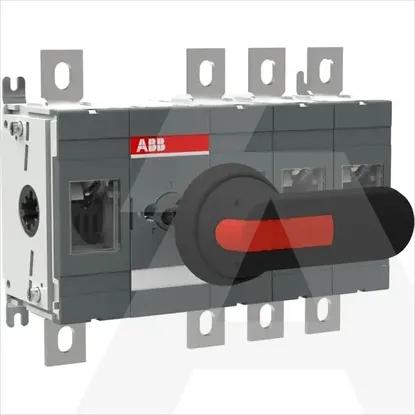

Main Product Image

1SCA106547R1001 | OT400E13P

Code: 1982077

ManufacturerRAZNO
Catalog number1SCA106547R1001
Type
EAN code6417019403243

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Version as main switch

Yes

Version as reversing switch

No

Version as emergency stop installation

No

Version as safety switch

No

Number of switches

1

Version as maintenance-/service switch

Yes

Max. rated operation voltage Ue AC

1000V

Rated permanent current Iu

400A

Conditioned rated short-circuit current Iq

-kA

Rated operation power at AC-3, 400 V

-kW

Rated permanent current at AC-23, 400 V

400A

Rated permanent current at AC-21, 400 V

400A

Rated operating voltage

1000 - 1000V

Switching power at 400 V

230kW

Rated operation power at AC-23, 400 V

230kW

Rated short-time withstand current lcw

15kA

Number of poles

4

Motor drive integrated

No

Number of auxiliary contacts as normally closed contact

0

Device construction

Complete device in housing

Voltage release optional

No

Suitable for floor mounting

No

Motor drive optional

No

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Colour control element

Black

Suitable for front mounting 4-hole

No

Interlockable

No

With pre-assembled cabling

No

Suitable for distribution board installation

Yes

Suitable for intermediate mounting

No

Suitable for front mounting centre

No

Type of electrical connection of main circuit

Bolt connection

Type of control element

Long turning handle

Degree of protection (NEMA)

Other

Width

240mm

Degree of protection (IP), front side

IP00

Height

185mm

Depth

107mm

Width in number of modular spacings

-


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
