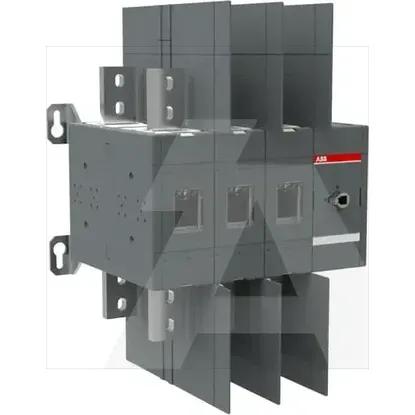

1SCA104048R1001 | OT800U30C

Version as maintenance-/service switch

Yes

Version as main switch

Yes

Max. rated operation voltage Ue AC

1000V

Number of switches

1

Rated operating voltage

1000 - 1000V

Rated permanent current Iu

-A

Version as emergency stop installation

No

Rated short-time withstand current lcw

50kA

Conditioned rated short-circuit current Iq

-kA

Rated permanent current at AC-21, 400 V

1600A

Version as safety switch

No

Rated operation power at AC-23, 400 V

-kW

Rated operation power at AC-3, 400 V

-kW

Switching power at 400 V

-kW

Version as reversing switch

No

Rated permanent current at AC-23, 400 V

1600A

Number of auxiliary contacts as normally closed contact

0

Motor drive optional

No

Motor drive integrated

No

Number of poles

3

Number of auxiliary contacts as change-over contact

0

Suitable for floor mounting

No

Device construction

Built-in device plug-in technique

Suitable for front mounting 4-hole

Yes

Number of auxiliary contacts as normally open contact

0

Voltage release optional

No

Suitable for front mounting centre

No

Suitable for distribution board installation

Yes

Suitable for intermediate mounting

No

Degree of protection (IP), front side

IP20

Interlockable

Yes

Type of electrical connection of main circuit

Screw connection

Degree of protection (NEMA)

1

Type of control element

Other

Colour control element

Black

With pre-assembled cabling

No

Width

400mm

Depth

335mm

Height

376mm

Width in number of modular spacings

-
