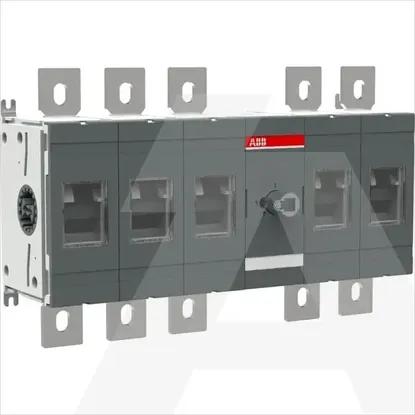

Main Product Image

1SCA103728R1001 | OT630E32

Code: 1981980

ManufacturerRAZNO
Catalog number1SCA103728R1001
Type
EAN code6417019381046

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Rated permanent current Iu

630A

Version as main switch

Yes

Number of switches

1

Version as safety switch

No

Version as reversing switch

No

Max. rated operation voltage Ue AC

1000V

Switching power at 400 V

-kW

Rated permanent current at AC-21, 400 V

630A

Version as emergency stop installation

No

Rated permanent current at AC-23, 400 V

-A

Rated short-time withstand current lcw

20kA

Version as maintenance-/service switch

Yes

Rated operation power at AC-3, 400 V

-kW

Rated operating voltage

1000 - 1000V

Conditioned rated short-circuit current Iq

-kA

Rated operation power at AC-23, 400 V

-kW

Motor drive integrated

No

Number of auxiliary contacts as normally closed contact

0

Number of poles

5

Motor drive optional

No

Suitable for front mounting 4-hole

No

Voltage release optional

No

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Device construction

Complete device in housing

Suitable for distribution board installation

Yes

Suitable for floor mounting

No

Type of control element

Other

Type of electrical connection of main circuit

Bolt connection

Degree of protection (NEMA)

Other

Degree of protection (IP), front side

IP00

With pre-assembled cabling

No

Interlockable

No

Suitable for front mounting centre

No

Suitable for intermediate mounting

No

Width

396mm

Height

250mm

Depth

140mm

Width in number of modular spacings

-


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
