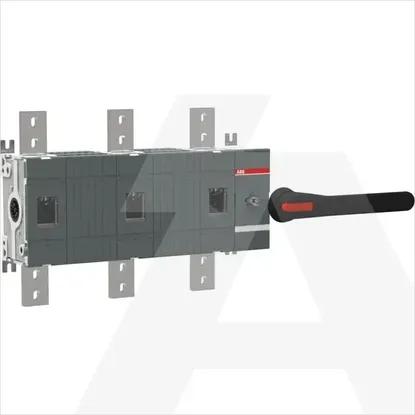

Main Product Image

1SCA022871R9190 | OT1600E30W8P

Code: 1981913

ManufacturerRAZNO
Catalog number1SCA022871R9190
Type
EAN code6417019338750

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • ABB

Technical specifications

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Rated operating voltage

1000 - 1000V

Version as reversing switch

No

Rated permanent current at AC-21, 400 V

1600A

Version as emergency stop installation

No

Number of switches

1

Max. rated operation voltage Ue AC

1000V

Version as safety switch

No

Rated permanent current at AC-23, 400 V

1250A

Rated operation power at AC-3, 400 V

-kW

Rated short-time withstand current lcw

50kA

Rated operation power at AC-23, 400 V

710kW

Switching power at 400 V

710kW

Conditioned rated short-circuit current Iq

-kA

Rated permanent current Iu

1600A

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Number of poles

3

Motor drive integrated

No

Motor drive optional

No

Suitable for front mounting 4-hole

No

Interlockable

No

Voltage release optional

No

With pre-assembled cabling

No

Suitable for front mounting centre

No

Suitable for intermediate mounting

No

Suitable for distribution board installation

No

Degree of protection (IP), front side

IP00

Colour control element

Black

Type of control element

Long turning handle

Device construction

Complete device in housing

Degree of protection (NEMA)

Other

Suitable for floor mounting

No

Type of electrical connection of main circuit

Bolt connection

Width

544.5mm

Height

372mm

Depth

167mm

Width in number of modular spacings

-


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
