Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- ABB
Technical specifications
Version as reversing switch
No
Version as safety switch
No
Version as maintenance-/service switch
Yes
Version as main switch
Yes
Max. rated operation voltage Ue AC
1000V
Version as emergency stop installation
No
Rated operating voltage
1000 - 1000V
Rated permanent current at AC-23, 400 V
400A
Number of switches
1
Rated operation power at AC-23, 400 V
230kW
Rated permanent current Iu
400A
Rated permanent current at AC-21, 400 V
400A
Rated short-time withstand current lcw
15kA
Conditioned rated short-circuit current Iq
-kA
Switching power at 400 V
230kW
Rated operation power at AC-3, 400 V
-kW
Number of poles
4
Motor drive integrated
No
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally closed contact
0
Voltage release optional
No
Motor drive optional
No
Suitable for floor mounting
No
Suitable for intermediate mounting
No
Device construction
Complete device in housing
Suitable for front mounting centre
No
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
Yes
Type of electrical connection of main circuit
Bolt connection
Degree of protection (IP), front side
IP00
Type of control element
Other
Degree of protection (NEMA)
Other
Width
270mm
With pre-assembled cabling
No
Interlockable
No
Height
185mm
Depth
107mm
Width in number of modular spacings
-
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

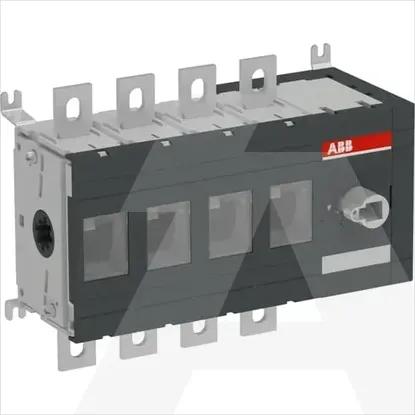

1SCA022870R3510 | OT400ES40
