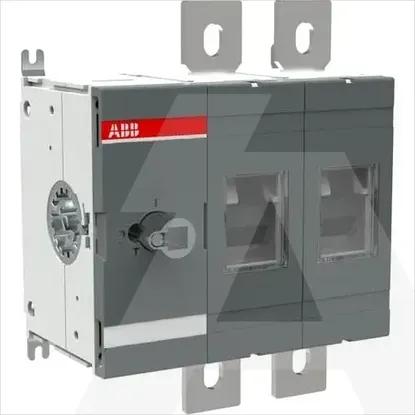

Main Product Image

1SCA022799R7380 | OT630E02

Code: 1981804

ManufacturerRAZNO
Catalog number1SCA022799R7380
Type
EAN code6417019264868

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • ABB

Technical specifications

Number of switches

1

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Suitable for floor mounting

No

Suitable for intermediate mounting

No

Version as main switch

Yes

Version as reversing switch

No

Version as safety switch

No

Version as maintenance-/service switch

Yes

Rated permanent current Iu

630A

Rated operating voltage

1000 - 1000V

Rated permanent current at AC-23, 400 V

630A

Rated permanent current at AC-21, 400 V

630A

Rated operation power at AC-23, 400 V

355kW

Rated short-time withstand current lcw

20kA

Number of poles

2

Motor drive optional

No

Device construction

Built-in device fixed built-in technique

Switching power at 400 V

355kW

Suitable for front mounting centre

No

Suitable for front mounting 4-hole

No

Version as emergency stop installation

No

Type of electrical connection of main circuit

Bolt connection

Type of control element

None

Degree of protection (IP), front side

Other

Interlockable

No

Max. rated operation voltage Ue AC

1000V

Degree of protection (NEMA)

1

Voltage release optional

No

Suitable for distribution board installation

Yes

Motor drive integrated

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
