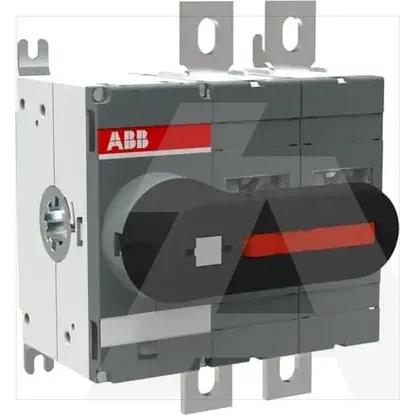

1SCA022783R1730 | OT400E02K

Version as reversing switch

No

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Number of switches

1

Version as safety switch

No

Rated operating voltage

1000 - 1000V

Max. rated operation voltage Ue AC

1000V

Conditioned rated short-circuit current Iq

-kA

Version as emergency stop installation

No

Rated permanent current Iu

400A

Switching power at 400 V

230kW

Rated operation power at AC-3, 400 V

-kW

Rated permanent current at AC-23, 400 V

400A

Rated short-time withstand current lcw

15kA

Rated operation power at AC-23, 400 V

230kW

Rated permanent current at AC-21, 400 V

400A

Number of auxiliary contacts as normally closed contact

0

Suitable for intermediate mounting

No

Device construction

Complete device in housing

Number of auxiliary contacts as normally open contact

0

Suitable for front mounting centre

No

Motor drive optional

No

Width

147mm

Motor drive integrated

No

Suitable for floor mounting

No

Suitable for front mounting 4-hole

No

Suitable for distribution board installation

Yes

Type of electrical connection of main circuit

Bolt connection

Interlockable

No

Type of control element

Long turning handle

With pre-assembled cabling

No

Number of poles

2

Degree of protection (NEMA)

Other

Degree of protection (IP), front side

IP00

Voltage release optional

No

Number of auxiliary contacts as change-over contact

0

Colour control element

Black

Height

185mm

Width in number of modular spacings

-

Depth

128mm
