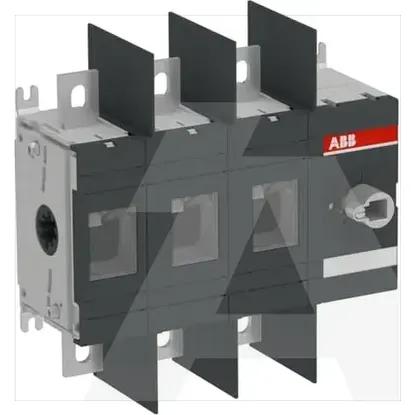

1SCA022748R1490 | OT400U30

Max. rated operation voltage Ue AC

1000V

Version as reversing switch

No

Version as emergency stop installation

No

Rated operating voltage

1000 - 1000V

Version as maintenance-/service switch

Yes

Version as main switch

Yes

Rated operation power at AC-23, 400 V

220kW

Version as safety switch

No

Rated permanent current Iu

400A

Conditioned rated short-circuit current Iq

-kA

Rated operation power at AC-3, 400 V

-kW

Number of switches

1

Rated short-time withstand current lcw

15kA

Switching power at 400 V

220kW

Rated permanent current at AC-21, 400 V

-A

Rated permanent current at AC-23, 400 V

400A

Suitable for floor mounting

No

Voltage release optional

No

Suitable for front mounting 4-hole

No

Number of poles

3

Number of auxiliary contacts as normally open contact

0

Suitable for distribution board installation

Yes

Motor drive optional

No

Number of auxiliary contacts as normally closed contact

0

Degree of protection (NEMA)

Other

Motor drive integrated

No

Number of auxiliary contacts as change-over contact

0

Device construction

Complete device in housing

Interlockable

No

Width

221mm

Type of control element

Other

Suitable for intermediate mounting

No

Suitable for front mounting centre

No

Degree of protection (IP), front side

IP00

With pre-assembled cabling

No

Type of electrical connection of main circuit

Bolt connection

Height

220mm

Width in number of modular spacings

-

Depth

105mm
