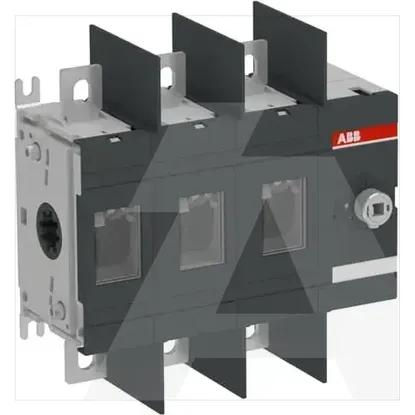

1SCA022723R0570 | OT200U30

Version as maintenance-/service switch

Yes

Version as main switch

Yes

Version as safety switch

No

Version as emergency stop installation

No

Number of switches

1

Max. rated operation voltage Ue AC

1000V

Rated permanent current Iu

200A

Rated operating voltage

1000 - 1000V

Rated short-time withstand current lcw

8kA

Conditioned rated short-circuit current Iq

-kA

Rated permanent current at AC-21, 400 V

-A

Version as reversing switch

No

Rated permanent current at AC-23, 400 V

250A

Switching power at 400 V

110kW

Rated operation power at AC-23, 400 V

110kW

Rated operation power at AC-3, 400 V

-kW

Number of auxiliary contacts as normally closed contact

0

Motor drive integrated

No

Number of auxiliary contacts as change-over contact

0

Suitable for floor mounting

No

Number of poles

3

Device construction

Complete device in housing

Type of control element

Other

Number of auxiliary contacts as normally open contact

0

Interlockable

No

Suitable for intermediate mounting

No

Voltage release optional

No

Suitable for front mounting 4-hole

No

Type of electrical connection of main circuit

Bolt connection

Motor drive optional

No

Suitable for distribution board installation

Yes

Suitable for front mounting centre

No

Width

169.5mm

With pre-assembled cabling

No

Degree of protection (NEMA)

Other

Degree of protection (IP), front side

IP00

Width in number of modular spacings

-

Height

170mm

Depth

82.5mm
