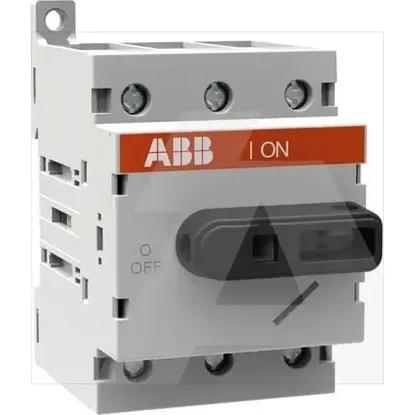

1SCA022530R5770 | OT63ML3

Code: 1981586

ManufacturerRAZNO
Catalog number1SCA022530R5770
Type
EAN code6417019168838

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • ABB

Technical specifications

Number of switches

1

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

50kA

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Suitable for floor mounting

No

Suitable for intermediate mounting

No

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as safety switch

No

Version as emergency stop installation

No

Max. rated operation voltage Ue AC

750V

Rated operating voltage

750 - 750V

Rated permanent current at AC-23, 400 V

75A

Rated permanent current at AC-21, 400 V

80A

Rated permanent current Iu

63A

Rated operation power at AC-23, 400 V

22kW

Switching power at 400 V

22kW

Number of poles

3

Version as reversing switch

No

Motor drive optional

No

Rated short-time withstand current lcw

1kA

Device construction

Built-in device fixed built-in technique

Voltage release optional

No

Suitable for front mounting 4-hole

No

Suitable for front mounting centre

No

Degree of protection (NEMA)

1

Interlockable

No

Motor drive integrated

No

Type of electrical connection of main circuit

Screw connection

Suitable for distribution board installation

Yes

Degree of protection (IP), front side

IP20

Type of control element

None


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
