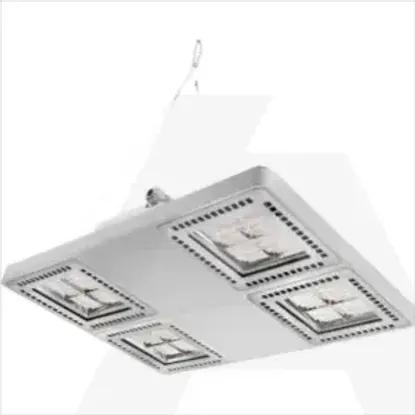

Main Product Image

GWS4420AH830

Code: 1976928

ManufacturerRAZNO
Catalog numberGWS4420AH830
Type
EAN code3660612114990

Details

  • Luminaires
  • High bay luminaire
  • 1 KOM
  • GEWISS

Technical specifications

Suitable for number of lamps

4

Mounting method

Pendant

Lamp type

LED not exchangeable

Nominal voltage

220 - 240V

Voltage type

AC

With control gear

Yes

With light source

Yes

Exchangeable control gear

Yes

Nominal current

250 - 250mA

Colour housing

Grey

Dimming LineSwitch

No

Dimming DALI

No

Lamp holder

None

Dimming DMX

No

Dimming RF

No

Dimming mains voltage modulation

No

Material housing

Plastic

Dimming 1-10 V

No

Dimming Sine Wave Reduction

No

Suitable for auxiliary lamp

No

Dimming phase cut-off

No

Reflector colour

Silver

Dimming phase cut-on

No

Dimming 0-10 V

No

Reflector

High-gloss

Dimming manufacturer's proprietary system

No

Dimming Touch and Dim

No

Dimming DSI

No

Dimming programmable

No

Ball-proof

Yes

Dimming potentiometer (integrated)

No

Dimming Zigbee

No

Dimming with push-button

No

Type of control gear

LED operating device current-controlled

No dim function

Yes

Light sharing

Symmetric

Suitable for emergency lighting

No

Beam angle

Wide beam 41-80°

Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)

90%

Degree of protection (IP)

IP66

Colour consistency (McAdam ellipse)

SDCM3

Emergency power supply integrated

No

Material reflector

Plastic

Filament test according to IEC 60695-2-11

850 °C - 30 s

Impact strength

IK08

Rated ambient temperature according to IEC62722-2-1

-30 - 50°C

Protection class

I

Luminaire with limited surface temperature, sign "D“

Yes

Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)

10%

Max. system power

189W

Light distributor

Refractor lens

Luminaire efficacy

154lm/W

Rated luminous flux according to IEC 62722-2-1

29200lm

Colour of light

White

Colour temperature

3000 - 3000K

Colour rendering index CRI

80-89

Power factor

0.9

Photobiological safety according to EN 62471

RG0

Colour temperature adjustable

No

Constant light output (CLO)

No

Beam angle adjustable

No

Luminous flux adjustable

No

Width

504mm

Length

700mm

Type of wiring

Ending

Conductor cross section

1.5mm²

Connection type

Push-in clamp

Number of poles

3

With protective cover

Yes

Max. number of luminaires per miniature circuit breaker C16

8

Height/depth

114mm

Operation by Bluetooth

No

Max. number of luminaires per miniature circuit breaker B16

4


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
