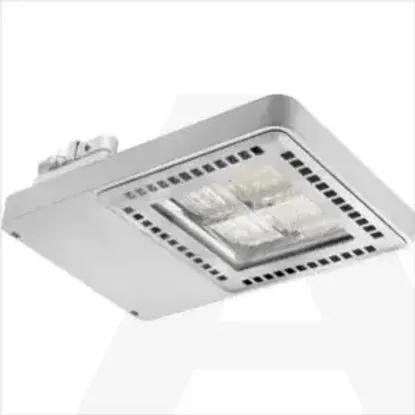

Main Product Image

GWS4120GH857

Code: 1976832

ManufacturerRAZNO
Catalog numberGWS4120GH857
Type
EAN code8034035058080

Details

  • Luminaires
  • High bay luminaire
  • 1 M
  • GEWISS

Technical specifications

Mounting method

Pendant

With light source

Yes

Lamp type

LED not exchangeable

Suitable for number of lamps

1

Lamp holder

None

Material housing

Plastic

With control gear

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming phase cut-off

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming DSI

No

Dimming programmable

No

Dimming Zigbee

No

Nominal current

325 - 325mA

Dimming with push-button

No

Beam angle

Wide beam 41-80°

Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)

90%

No dim function

Yes

Reflector

High-gloss

Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)

10%

Dimming DALI

No

Dimming RF

No

Dimming mains voltage modulation

No

Dimming Sine Wave Reduction

No

Suitable for emergency lighting

No

Filament test according to IEC 60695-2-11

850 °C - 30 s

Colour consistency (McAdam ellipse)

SDCM3

Material reflector

Plastic

Voltage type

AC

Colour housing

Grey

Exchangeable control gear

Yes

Dimming Touch and Dim

No

Dimming phase cut-on

No

Suitable for auxiliary lamp

No

Nominal voltage

120 - 277V

Type of control gear

LED operating device current-controlled

Dimming DMX

No

Max. system power

65W

Light distributor

Refractor lens

Reflector colour

Silver

Degree of protection (IP)

IP66

Light sharing

Symmetric

Dimming manufacturer's proprietary system

No

Impact strength

IK08

Luminaire with limited surface temperature, sign "D“

Yes

Ball-proof

Yes

Emergency power supply integrated

No

Protection class

I

Rated ambient temperature according to IEC62722-2-1

-25 - 40°C

Rated luminous flux according to IEC 62722-2-1

9900lm

Colour of light

White

Luminaire efficacy

152lm/W

Colour temperature

5700 - 5700K

Colour rendering index CRI

80-89

Photobiological safety according to EN 62471

RG0

Power factor

0.9

Constant light output (CLO)

No

Colour temperature adjustable

No

Beam angle adjustable

No

Luminous flux adjustable

No

Height/depth

80mm

Length

383mm

Type of wiring

Ending

Width

253mm

Number of poles

3

Conductor cross section

1.5mm²

Connection type

Push-in clamp

Max. number of luminaires per miniature circuit breaker B16

10

Max. number of luminaires per miniature circuit breaker C16

17

Operation by Bluetooth

No

With protective cover

Yes


Warehouse states

Zagreb:

0 M

Zadar:

0 M


From same serie
