Details
- Low-voltage industrial components
- Frequency converter =< 1 kV
- 1 KOM
- LOVATO
Technical specifications
Mains voltage
400 - 480V
Max. output frequency
599Hz
Max. output at linear load at rated output voltage
2.2kW
Nominal output current I2N
5.6A
Relative symmetric net voltage tolerance
10%
Number of phases output
3
Max. output voltage
480V
Relative symmetric net frequency tolerance
10%
Number of analogue outputs
1
Number of digital inputs
5
Number of analogue inputs
2
Mains frequency
50/60 Hz
Max. output at quadratic load at rated output voltage
2.2kW
Number of phases input
3
Number of digital outputs
2
With control element
Yes
Supporting protocol for INTERBUS
No
Supporting protocol for PROFIBUS
Yes
Supporting protocol for KNX
No
Application in industrial area permitted
No
Supporting protocol for TCP/IP
No
Supporting protocol for ASI
No
Application in domestic- and commercial area permitted
No
Supporting protocol for CAN
No
Integrated breaking resistance
No
Type of converter
U converter
4-quadrant operation possible
No
Degree of protection (IP)
IP20
Height
278mm
Width
60mm
Depth
130mm
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for BACnet
No
Supporting protocol for other bus systems
Yes
Number of HW-interfaces industrial Ethernet
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces serial TTY
0
Number of interfaces PROFINET
0
Number of HW-interfaces USB
1
With PC connection
Yes
With optical interface
No
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

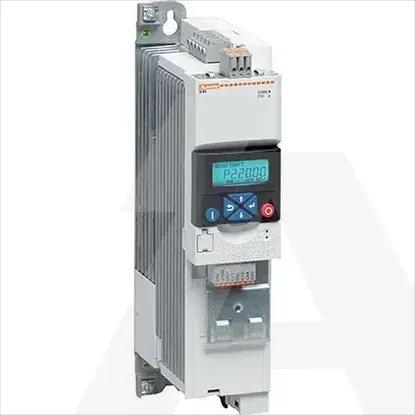

VLB30022A480 | FREKVENTNI PRETVARAČ 3F 5.6A 2.2
