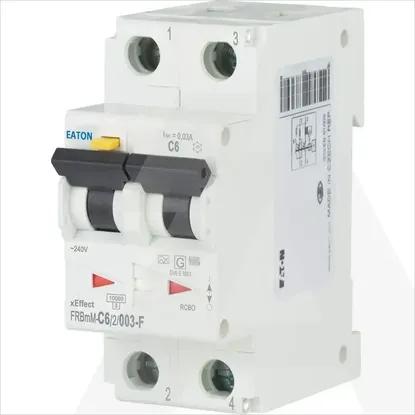

FRBmM-C6/2/003-F

Number of protected poles

2

Rated voltage

240V

Rated insulation voltage Ui

250V

Number of poles (total)

2

Rated fault current

0.03A

Rated impulse withstand voltage Uimp

4kV

Frequency

50 Hz

Rated short-circuit breaking capacity according to EN 61009

10kA

Surge current capacity

3kA

Current limiting class

3

Rated current

6A

Built-in depth

70mm

Pollution degree

2

Rated short-circuit breaking capacity Icn according to EN 61009-1

10kA

Disconnection characteristic

Short-time delayed

Concurrently switching neutral conductor

No

Rated short-circuit breaking capacity according to IEC 60947-2

0kA

Connectable conductor cross section multi-wired

1 - 25mm²

Anti-nuisance tripping version

No

With interlocking device

No

Over voltage category

3

Connectable conductor cross section solid-core

1 - 25mm²

Voltage type

AC

Release characteristic

C

Ambient temperature during operating

-25 - 40°C

Flush-mounted installation

No

Degree of protection (IP)

IP20

Width in number of modular spacings

2

Leakage current type

F
