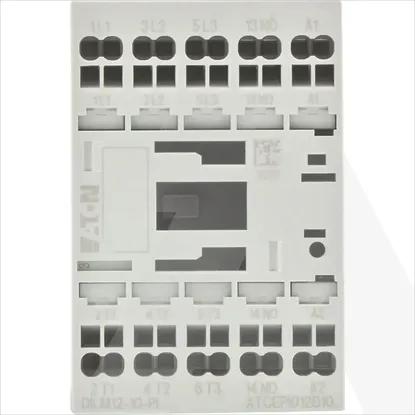

Main Product Image

DILM12-10(220V50/60HZ)-PI

Code: 1956813

ManufacturerRAZNO
Catalog number199651
Type
EAN code4015081983520

Details

  • Low-voltage industrial components
  • Power contactor, AC switching
  • 1 KOM
  • EATON

Technical specifications

Number of normally closed contacts as main contact

0

Operating voltage at AC 50 Hz

24 - 690V

Rated control supply voltage Us at AC 50HZ

220 - 220V

Rated operation current Ie at AC-1, 400 V

22A

Rated operation power at AC-3, 400 V

5.5kW

Type of electrical connection of main circuit

Spring clamp connection

Voltage type for actuating

AC

Rated operation current Ie at AC-4, 400 V

7A

Rated operation power NEMA

0kW

Rated operation current Ie at AC-3, 400 V

12A

Number of normally open contacts as main contact

3

Rated control supply voltage Us at DC

0 - 0V

Number of auxiliary contacts as normally closed contact

0

Rated control supply voltage Us at AC 60HZ

220 - 220V

Width

45mm

Depth

75mm

Rated operation power at AC-4, 400 V

3kW

Height

68mm

Operating voltage at AC 60 Hz

24 - 690V

Number of auxiliary contacts as normally open contact

1

Modular version

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
