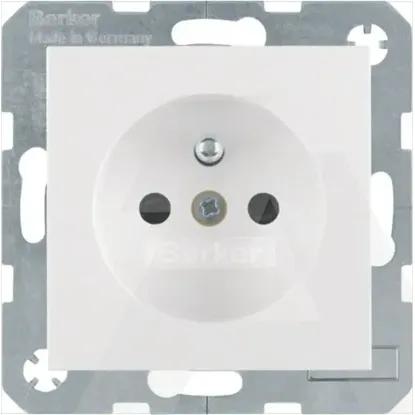

Details
- Domestic switching devices
- Socket outlet
- 1 KOM
- HAGER
Technical specifications
Rated fault current
-mA
Model
Earthing pin
Number of active pins (round)
2
Number of active pins (flat)
0
Number of units
1
With signal lamp
No
Number of modules (module system)
1
Number of phases
1
Label space/information surface
No
Connection type
Screwed terminal
Number of socket outlets switchable
0
Imprint/indication
None
With enhanced contact protection
Yes
RAL-number (similar)
9010
Lockable
No
Eject-mechanism
No
Insulated mounting
Yes
With function lighting
No
Transparent
No
Fault current protection
No
With orientation lighting
No
With hinged lid
No
Colour
White
Type of fastening
Mounting with claw and screw
Special power supply
No special power supply
Material
Plastic
Metallic colour
No
With miniature fuse
No
Over voltage protection
No
Material quality
Duroplast
Mounting method
Flush mounted (plaster)
For heavy conditions (according to VDE)
No
Surface protection
Untreated
Halogen free
Yes
Anti-bacterial treatment
No
Surface finishing
Glossy
With loop through function
No
With on/off switch
No
Rotated central insert
No
Suitable for degree of protection (IP)
IP20
Nominal current
16A
Nominal voltage
250V
Frequency
50 - 60Hz
Impact strength
IK02
Width of device
71mm
IFTTT support available
No
Depth of device
41.6mm
Height of device
71mm
Min. depth of built-in installation box
31mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
