Details
- Domestic switching devices

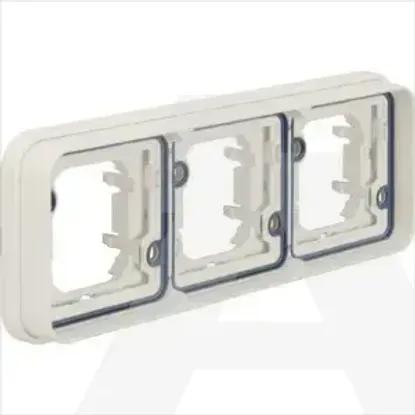

- Cover frame for domestic switching devices
- 1 KOM
- HAGER
Technical specifications
Number of modules horizontal (module system)
0
Number of modules vertical (module system)
0
Number of units vertical
1
Material
Plastic
Material quality
Thermoplastic
Number of units horizontal
3
RAL-number (similar)
9010
Diameter bore hole (opening)
0mm
Built-in height
71mm
Depth
38mm
Height
224mm
Number of units
3
Suitable for floor box
No
Suitable for wall duct
Yes
Mounting direction
Horizontal
With mounting grid
No
Anti-bacterial treatment
No
Label space/information surface
No
Flush-mounted installation
Yes
Halogen free
Yes
Surface finishing
Glossy
Suitable for built-in installation
Yes
Transparent
No
Surface protection
Untreated
Colour
White
Degree of protection (IP)
IP20
With hinged lid
No
Type of fastening
Screw mounting
Impact strength
IK05
Width
80.5mm
Built-in width
80.5mm
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
